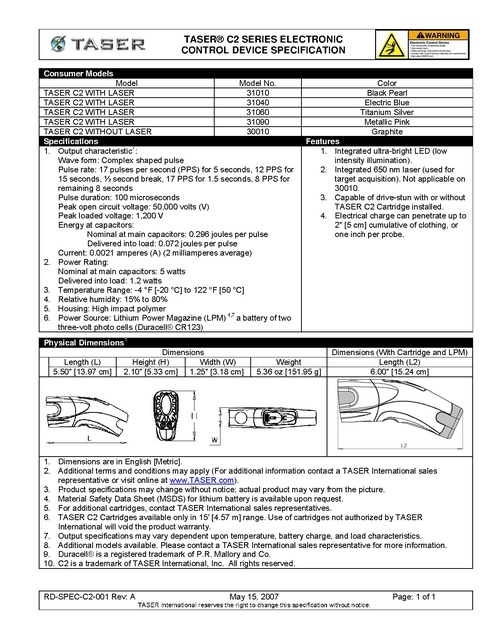

TASER® C2 SERIES ELECTRONIC
CONTROL DEVICE SPECIFICATION
Consumer Models
Model
Model No.
TASER C2 WITH LASER
31010
TASER C2 WITH LASER
31040
TASER C2 WITH LASER
31060
TASER C2 WITH LASER
31090
TASER C2 WITHOUT LASER
30010
Specifications
1. Output characteristic7:
Wave form: Complex shaped pulse
Pulse rate: 17 pulses per second (PPS) for 5 seconds, 12 PPS for
15 seconds, ½ second break, 17 PPS for 1.5 seconds, 8 PPS for
remaining 8 seconds
Pulse duration: 100 microseconds
Peak open circuit voltage: 50,000 volts (V)
Peak loaded voltage: 1,200 V
Energy at capacitors:
Nominal at main capacitors: 0.296 joules per pulse
Delivered into load: 0.072 joules per pulse
Current: 0.0021 amperes (A) (2 milliamperes average)
2. Power Rating:
Nominal at main capacitors: 5 watts
Delivered into load: 1.2 watts
3. Temperature Range: -4 °F [-20 °C] to 122 °F [50 °C]
4. Relative humidity: 15% to 80%
5. Housing: High impact polymer
6. Power Source: Lithium Power Magazine (LPM) 4,7 a battery of two
three-volt photo cells (Duracell® CR123)

Color
Black Pearl
Electric Blue
Titanium Silver
Metallic Pink
Graphite
Features
1. Integrated ultra-bright LED (low
intensity illumination).
2. Integrated 650 nm laser (used for
target acquisition). Not applicable on
30010.
3. Capable of drive-stun with or without
TASER C2 Cartridge installed.
4. Electrical charge can penetrate up to
2″ [5 cm] cumulative of clothing, or
one inch per probe.

Physical Dimensions1
Length (L)
5.50″ [13.97 cm]

Dimensions
Height (H)
Width (W)
2.10″ [5.33 cm] 1.25″ [3.18 cm]

Weight
5.36 oz [151.95 g]

Dimensions (With Cartridge and LPM)
Length (L2)
6.00″ [15.24 cm]

1. Dimensions are in English [Metric].
2. Additional terms and conditions may apply (For additional information contact a TASER International sales
representative or visit online at www.TASER.com).
3. Product specifications may change without notice; actual product may vary from the picture.
4. Material Safety Data Sheet (MSDS) for lithium battery is available upon request.
5. For additional cartridges, contact TASER International sales representatives.
6. TASER C2 Cartridges available only in 15′ [4.57 m] range. Use of cartridges not authorized by TASER
International will void the product warranty.
7. Output specifications may vary dependent upon temperature, battery charge, and load characteristics.
8. Additional models available. Please contact a TASER International sales representative for more information.
9. Duracell® is a registered trademark of P.R. Mallory and Co.
10. C2 is a trademark of TASER International, Inc. All rights reserved.

RD-SPEC-C2-001 Rev: A

May 15, 2007
TASER International reserves the right to change this specification without notice.

Page: 1 of 1
