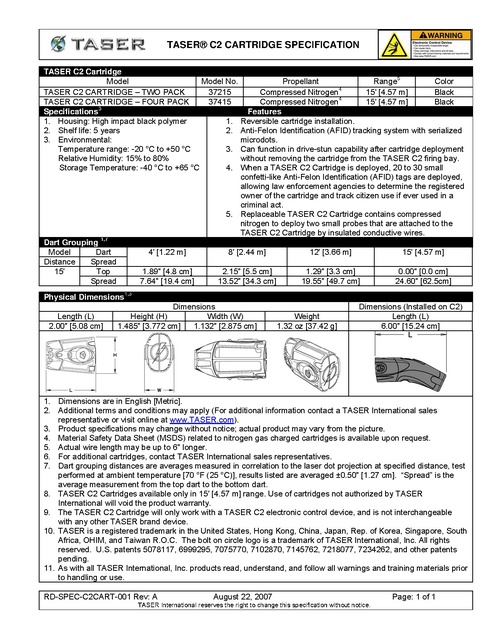

TASER® C2 CARTRIDGE SPECIFICATION
TASER C2 Cartridge
Model
Model No.
Propellant
Range5
Color
TASER C2 CARTRIDGE – TWO PACK
37215
Compressed Nitrogen4
15′ [4.57 m]
Black
TASER C2 CARTRIDGE – FOUR PACK
37415
Compressed Nitrogen4
15′ [4.57 m]
Black
3
Specifications
Features
1. Housing: High impact black polymer
1. Reversible cartridge installation.
2. Shelf life: 5 years
2. Anti-Felon Identification (AFID) tracking system with serialized
3. Environmental:
microdots.
Temperature range: -20 °C to +50 °C
3. Can function in drive-stun capability after cartridge deployment
Relative Humidity: 15% to 80%
without removing the cartridge from the TASER C2 firing bay.
Storage Temperature: -40 °C to +65 °C
4. When a TASER C2 Cartridge is deployed, 20 to 30 small
confetti-like Anti-Felon Identification (AFID) tags are deployed,
allowing law enforcement agencies to determine the registered
owner of the cartridge and track citizen use if ever used in a
criminal act.
5. Replaceable TASER C2 Cartridge contains compressed
nitrogen to deploy two small probes that are attached to the
TASER C2 Cartridge by insulated conductive wires.
Dart Grouping 1,7
Model
Dart
4′ [1.22 m]
8′ [2.44 m]
12′ [3.66 m]
15′ [4.57 m]
Distance
Spread
15′
Top
1.89″ [4.8 cm]
2.15″ [5.5 cm]
1.29″ [3.3 cm]
0.00″ [0.0 cm]
Spread
7.64″ [19.4 cm]
13.52″ [34.3 cm]
19.55″ [49.7 cm]
24.60″ [62.5cm]
Physical Dimensions1,3
Length (L)
2.00″ [5.08 cm]

Dimensions
Height (H)
Width (W)
1.485″ [3.772 cm]
1.132″ [2.875 cm]

Weight
1.32 oz [37.42 g]

Dimensions (Installed on C2)
Length (L)
6.00″ [15.24 cm]

1. Dimensions are in English [Metric].
2. Additional terms and conditions may apply (For additional information contact a TASER International sales
representative or visit online at www.TASER.com).
3. Product specifications may change without notice; actual product may vary from the picture.
4. Material Safety Data Sheet (MSDS) related to nitrogen gas charged cartridges is available upon request.
5. Actual wire length may be up to 6″ longer.
6. For additional cartridges, contact TASER International sales representatives.
7. Dart grouping distances are averages measured in correlation to the laser dot projection at specified distance, test
performed at ambient temperature [70 °F (25 °C)], results listed are averaged ±0.50″ [1.27 cm]. “Spread” is the
average measurement from the top dart to the bottom dart.
8. TASER C2 Cartridges available only in 15′ [4.57 m] range. Use of cartridges not authorized by TASER
International will void the product warranty.
9. The TASER C2 Cartridge will only work with a TASER C2 electronic control device, and is not interchangeable
with any other TASER brand device.
10. TASER is a registered trademark in the United States, Hong Kong, China, Japan, Rep. of Korea, Singapore, South
Africa, OHIM, and Taiwan R.O.C. The bolt on circle logo is a trademark of TASER International, Inc. All rights
reserved. U.S. patents 5078117, 6999295, 7075770, 7102870, 7145762, 7218077, 7234262, and other patents
pending.
11. As with all TASER International, Inc. products read, understand, and follow all warnings and training materials prior
to handling or use.
RD-SPEC-C2CART-001 Rev: A

August 22, 2007

TASER International reserves the right to change this specification without notice.

Page: 1 of 1
